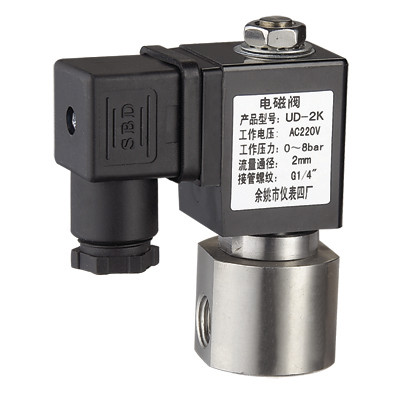

Stainless Steel Miniature Solenoid Valve Normally Open NO 24vdc NPT Thread

  • 1
  • 2

Brand Name : Round Star

Model Number : UD

Certification : CE/ROHS/TUV/FDA

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 5,000pcs per month

Delivery Time : 3 working days after received your payment

Packaging Details : exporting condition

working medium : gas、air、water

medium temperature : -5 ～ 80℃

working pressure : 0～8bar

valvebody material : SS304

sealing material : NBR

interface : NPT thread

working voltage : 24V

Contact Now

stainless steel miniature solenoid valve normally open NO dc24v

working medium: water,liquid,air

medium temperature:-5～80℃

working pressure:0～30bar

working type:direct acting pilot operated

valvebody material:brass SS304

sealing material:NBR

interface:G thread NPT thread

Working voltage:AC220～240V AC110V 50/60Hz 22VA

DC24/12V 13W IP65 H degree

options:

Rc thread

Digital timer

LED light connector

Stainless Steel Miniature Solenoid Valve Normally Open NO 24vdc NPT Thread

UD-series solenoid valve specification table

model

interface size

Orifice size

(mm)

Cv

 working pressure (bar) dimension valvebody material Weight(Kg)
NC NO

length×width×height

(mm)
AC220V DC24V AC220V DC24V
UD-2

1/8＂

1/4＂

 1.5 0.1 0 ～ 30 0 ～ 20 0 ～ 8 0 ～ 8 φ36×75 SS304 0.4
2.0 0.2 0 ～ 20 0 ～ 15 0 ～ 8 0 ～ 8 φ36×75 0.4
UD-3 3/8＂ 3.5 0.25 0 ～ 10 0 ～ 8 0 ～ 3 0 ～ 3 φ45×81 0.5
UD-C-10N 3/8＂ 10 3.2 0.3～ 10 0.3～5 0.1～13 0.1～13 45×31×86 copper,SS 0.4

Stainless Steel Miniature Solenoid Valve Normally Open NO 24vdc NPT Thread

Stainless Steel Miniature Solenoid Valve Normally Open NO 24vdc NPT Thread
