2 Inch Normally Open NO Plastic Irrigation Solenoid Valve German PA66 2 Way

Name: 2 Inch Normally Open NO Plastic Irrigation Solenoid Valve German PA66 2 Way
Brand: ROUND STAR
Price: 1 USD

Brand Name : ROUND STAR

Model Number : YSA-K

Certification : ISO CE ROHS

Place of Origin : CHINA (YUYAO CITY)

MOQ : negotiation

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : consult

Delivery Time : depend on the order quantity

Packaging Details : package for exporting standard

material : PA66 ( from German ）

working type : pilot operated

interface type : G thread NPT thread

sealing material : VITON

voltage : AC220～240V AC110V 50/60Hz 22VA DC24V/12V 14W

coil : IP65 H degree

Contact Now

YSA-K series 2-way normally open German PA66 plastic water air irrigation solenoid valve 1/2＂～ 2＂

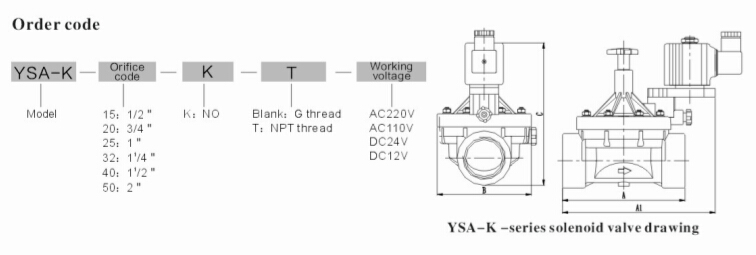

YSA-K -series(NO) solenoid valve specification table

model	orifice size ( mm )	Interface size	Cv	working pressure(bar)	dimension				normal order code	Weight(Kg)
model	orifice size ( mm )	Interface size	Cv	working pressure(bar)	A	A1	B	C	AC220V G thread	Weight(Kg)
YSA-15K	15	1/2＂	3.5	0.3～6	85	111	73	126	YSA–15K - AC220V	0.7
YSA-20K	20	3/4＂	7.6	0.3～6	90	116	73	128	YSA–20K - AC220V	0.7
YSA-25K	25	1＂	12	0.3～6	114	145	90	152	YSA–25K - AC220V	0.7
YSA-32K	32	1¹/4＂	20	0.3～6	150	173	128	173	YSA–32K - AC220V	0.9
YSA-40K	40	1¹/2＂	30	0.3～6	152	178	128	176	YSA–40K - AC220V	1.0
YSA-50K	50	2＂	48	0.3～6	170	195	140	190	YSA–50K - AC220V	1.2

2 Inch Normally Open NO Plastic Irrigation Solenoid Valve German PA66 2 Way

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China.

The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to all over the whole world since 2004.
