YSA YSB series 2-way pilot operated normally closed German PA66 plastic water air solenoid valve 1/2＂ ～ 2＂
working medium:water,liquid,air medium temperature:-5 ～ 80℃
working pressure:0.3 ～ 8 bar working type:pilot operated, NC
valvebody material:PA66 sealing material:NBR
interface:G thread NPT thread
Working voltage:AC220～240V AC110V 50/60Hz DC24V YSA-series AC 25VA DC 13W IP65 H degree

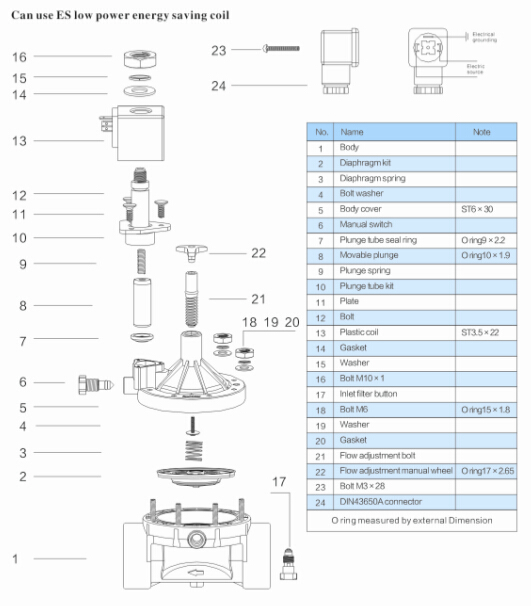

Options: LED light connector Es low power energy saving coil(AC220V 3VA DC24V3W)
Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China.
The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to more than twenty countries and areas, such as USA, France, UK, Germany, Italy, Australia, Russia, Taiwan, and the middle east countries etc., and our distributors spread all over the whole country.

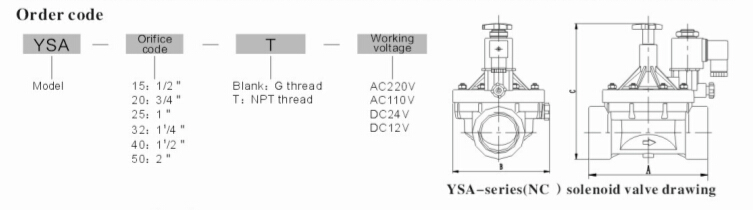

YSA YSB-series(NC)solenoid valve specification table
| model | orifice size ( mm ) | Interface size | Cv | working pressure(bar) | length×width×height ( mm ) | Normal order code | weight (Kg) |
| AC220V G thread |
| YSA - 15 | 15 | 1/2＂ | 3.5 | 0.3 ～ 8 | 85×73×126 | YSA–15 - AC220V | 0.6 |
| YSA - 20 | 20 | 3/4＂ | 7.6 | 0.3 ～ 8 | 90×73×128 | YSA–20 - AC220V | 0.6 |
| YSA - 25 | 25 | 1＂ | 12 | 0.3 ～ 8 | 125×90×148 | YSA–25 - AC220V | 0.6 |
| YSA - 32 | 32 | 11/4＂ | 20 | 0.3 ～ 8 | 150×128×173 | YSA–32 - AC220V | 0.9 |
| YSA - 40 | 40 | 11/2＂ | 30 | 0.3 ～ 8 | 152×128×176 | YSA–40 - AC220V | 1.0 |
| YSA - 50 | 50 | 2＂ | 48 | 0.3 ～ 8 | 170×140×190 | YSA–50 - AC220V | 1.2 |
| YSB - 15 | 15 | 1/2＂ | 3.5 | 0.3 ～ 8 | 85×73×126 | YSB–15 - AC220V | 0.6 |
| YSB - 20 | 20 | 3/4＂ | 7.6 | 0.3 ～ 8 | 90×73×128 | YSB–20 - AC220V | 0.6 |
| YSB - 25 | 25 | 1＂ | 12 | 0.3 ～ 8 | 125×90×148 | YSB–25 - AC220V | 0.9 |
| YSB - 32 | 32 | 11/4＂ | 20 | 0.3 ～ 8 | 150×128×173 | YSB–32 - AC220V | 0.9 |
| YSB - 40 | 40 | 11/2＂ | 30 | 0.3 ～ 8 | 152×128×176 | YSB–40 - AC220V | 1.2 |
| YSB - 50 | 50 | 2＂ | 48 | 0.3 ～ 8 | 170×140×190 | YSB–50 - AC220V | 1.4 |
Options: LED light connector, Es low power energy saving coil(AC220V 3VA DC24V 3W)
