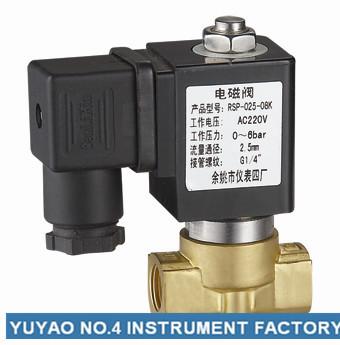

RSP -series 2-way direct acting （ NO ） mini solenoid valve 1/8＂～ 1/4＂

Name: RSP series 2way direct acting NO mini solenoid valve 18 14
Brand: ROUND STAR
Price: 1 USD

Brand Name : ROUND STAR

Model Number : RSP

Certification : ISO CE ROHS

Place of Origin : CHINA

MOQ : 5 pieces

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : ask for advice

Delivery Time : 3~14 working days

Packaging Details : carton pallet

material : brass stainless steel

interface size : 1/8＂～ 1/4＂

interface : 2-way

operate : direct acting

working type : normally open

medium : water air liquid

Contact Now

RSP -series 2-way direct acting （ NO ） mini solenoid valve 1/8＂～ 1/4＂

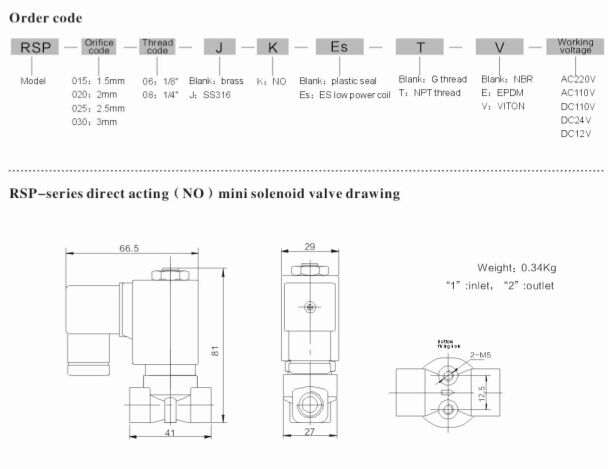

RSP-series direct acting(NO)mini solenoid valve specification table

(ES coil can match EPDM and VITON, but medium temperature must be ≤80℃)

interface	orifice (mm)	Cv	working pressure(bar)			medium temperature ℃	sealing material	coil insulation degree	power				normal order code
			min pressure	Max pressure					normal coil		Es coil		plastic seal AC220V G thread sealing material:blank:NBR E: EPDM V: VITON
				air gas water hotwater liquid light oil					VA	W	VA	W
				air gas water hotwater liquid light oil					AC 220 V	DC 24 V	AC 220 V	DC 24 V
				AC	DC				AC 220 V	DC 24 V	AC 220 V	DC 24 V	brass	SS316
1/8^〃	1.5	0.06	0	16	16	80	NBR	H	22	13	3	3	RSP-015-06K-AC220V	RSP-015-06JK-AC220V
	1.5	0.06	0	16	16	130	EPDM	H	22	13			RSP-015-06K-E-AC220V	RSP-015-06JK-E-AC220V
	1.5	0.06	0	16	16	120	VITON	H	22	13			RSP-015-06K-V-AC220V	RSP-015-06JK-V-AC220V
	2.0	0.12	0	10	10	80	NBR	H	22	13	3	3	RSP-020-06K-AC220V	RSP-020-06JK-AC220V
	2.0	0.12	0	10	10	130	EPDM	H	22	13			RSP-020-06K-E-AC220V	RSP-020-06JK-E-AC220V
	2.0	0.12	0	10	10	120	VITON	H	22	13			RSP-020-06K-V-AC220V	RSP-020-06JK-V-AC220V
	2.5	0.2	0	6	6	80	NBR	H	22	13	3	3	RSP-025-06K-AC220V	RSP-025-06JK-AC220V
	2.5	0.2	0	6	6	130	EPDM	H	22	13			RSP-025-06K-E-AC220V	RSP-025-06JK-E-AC220V
	2.5	0.2	0	6	6	120	VITON	H	22	13			RSP-025-06K-V-AC220V	RSP-025-06JK-V-AC220V
	3.0	0.25	0	5	5	80	NBR	H	22	13	3	3	RSP-030-06K-AC220V	RSP-030-06JK-AC220V
	3.0	0.25	0	5	5	130	EPDM	H	22	13			RSP-030-06K-E-AC220V	RSP-030-06JK-E-AC220V
	3.0	0.25	0	5	5	120	VITON	H	22	13			RSP-030-06K-V-AC220V	RSP-030-06JK-V-AC220V
	4.0	0.3	0	3	3	80	NBR	H	22	13	3	3	RSP-040-06K-AC220V	RSP-040-06JK-AC220V
	4.0	0.3	0	3	3	130	EPDM	H	22	13			RSP-040-06K-E-AC220V	RSP-040-06JK-E-AC220V
	4.0	0.3	0	3	3	120	VITON	H	22	13			RSP-040-06K-V-AC220V	RSP-040-06JK-V-AC220V
1/4^〃	1.5	0.06	0	16	16	80	NBR	H	22	13	3	3	RSP-015-08K-AC220V	RSP-015-08JK-AC220V
	1.5	0.06	0	16	16	130	EPDM	H	22	13			RSP-015-08K-E-AC220V	RSP-015-08JK-E-AC220V
	1.5	0.06	0	16	16	120	VITON	H	22	13			RSP-015-08K-V-AC220V	RSP-015-08JK-V-AC220V
	2.0	0.12	0	10	10	80	NBR	H	22	13	3	3	RSP-020-08K -AC220V	RSP-020-08JK-AC220V
	2.0	0.12	0	10	10	130	EPDM	H	22	13			RSP-020-08K -E-AC220V	RSP-020-08JK-E-AC220V
	2.0	0.12	0	10	10	120	VITON	H	22	13			RSP-020-08K -V-AC220V	RSP-020-08JK-V-AC220V
	2.5	0.2	0	6	6	80	NBR	H	22	13	3	3	RSP-025-08K -AC220V	RSP-025-08JK-AC220V
	2.5	0.2	0	6	6	130	EPDM	H	22	13			RSP-025-08K -E-AC220V	RSP-025-08JK-E-AC220V
	2.5	0.2	0	6	6	120	VITON	H	22	13			RSP-025-08K -V-AC220V	RSP-025-08JK-V-AC220V
	3.0	0.25	0	5	5	80	NBR	H	22	13	3	3	RSP-030-08K-AC220V	RSP-030-08JK-AC220V
	3.0	0.25	0	5	5	130	EPDM	H	22	13			RSP-030-08K -E-AC220V	RSP-030-08JK-E-AC220V
	3.0	0.25	0	5	5	120	VITON	H	22	13			RSP-030-08K -V-AC220V	RSP-030-08JK-V-AC220V
	4.0	0.3	0	3	3	80	NBR	H	22	13	3	3	RSP-040-08K-AC220V	RSP-040-08JK-AC220V
	4.0	0.3	0	3	3	130	EPDM	H	22	13			RSP-040-08K-E-AC220V	RSP-040-08JK-E-AC220V
	4.0	0.3	0	3	3	120	VITON	H	22	13			RSP-040-08K-V-AC220V	RSP-040-08JK-V-AC220V
